Prototyping Design and manufacture
Whatever the project CAD design prototype, CNC cutting
Email us for Price and availability - Ask about our custom build service
W
Ultimate Design for Maximum performance Australian made to meet the harsh conditions
State of the art Technology in a compact design
Specifically engineered to comply with new Australian regulations . The ultimate E scooter
45-60-72v 3000w electric E car buggy motor fast, High torque 10in rim speed 80km
-

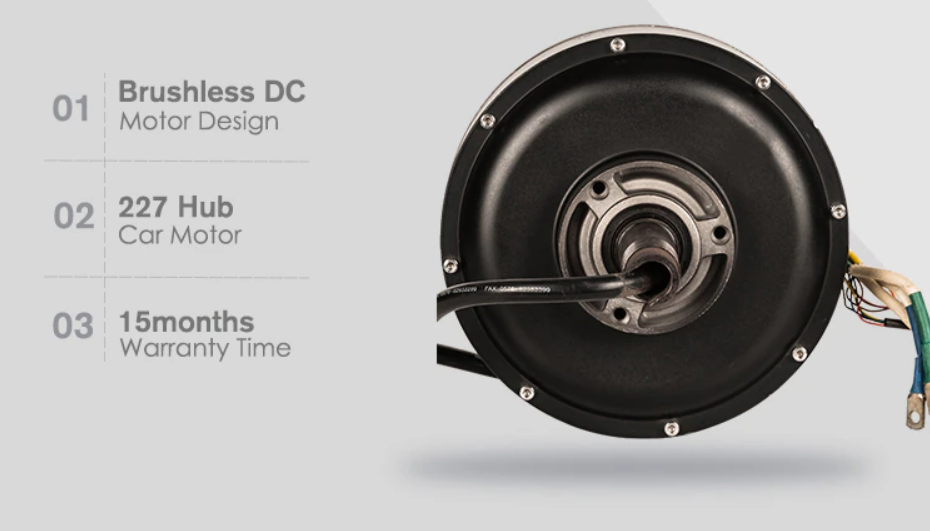

Brushless motor for Electric car / buggy single shaft
We also have kits with everything required to convert to electric
Motor Spec -
1) Motor Design: 227 Electric Car Hub Motor with Single Shaft
2) Motor Brand: YUMA Motor, YMMotor
3) Rim Size: can match with 10inch, 12inch, 13inch wheel rim
4) Magnet Height: 60H, 16 pole pairs
5) Stator: Aluminum Core
6) Rated Power:3000W
7) Peak Power: 8000W
8) Speed: 40KPH-110KPH
9) Work Voltage Range: 48V-72V
10) Peak Current: 100A
11) Torque: 160-220N.m
12) Brake Type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
13) CB & PCD: 63cm, 4*100mm
14) Hall: Dual Halls with waterproof connectors(One for spare)
15) Waterproof Grade: IP65
16) Color: Black

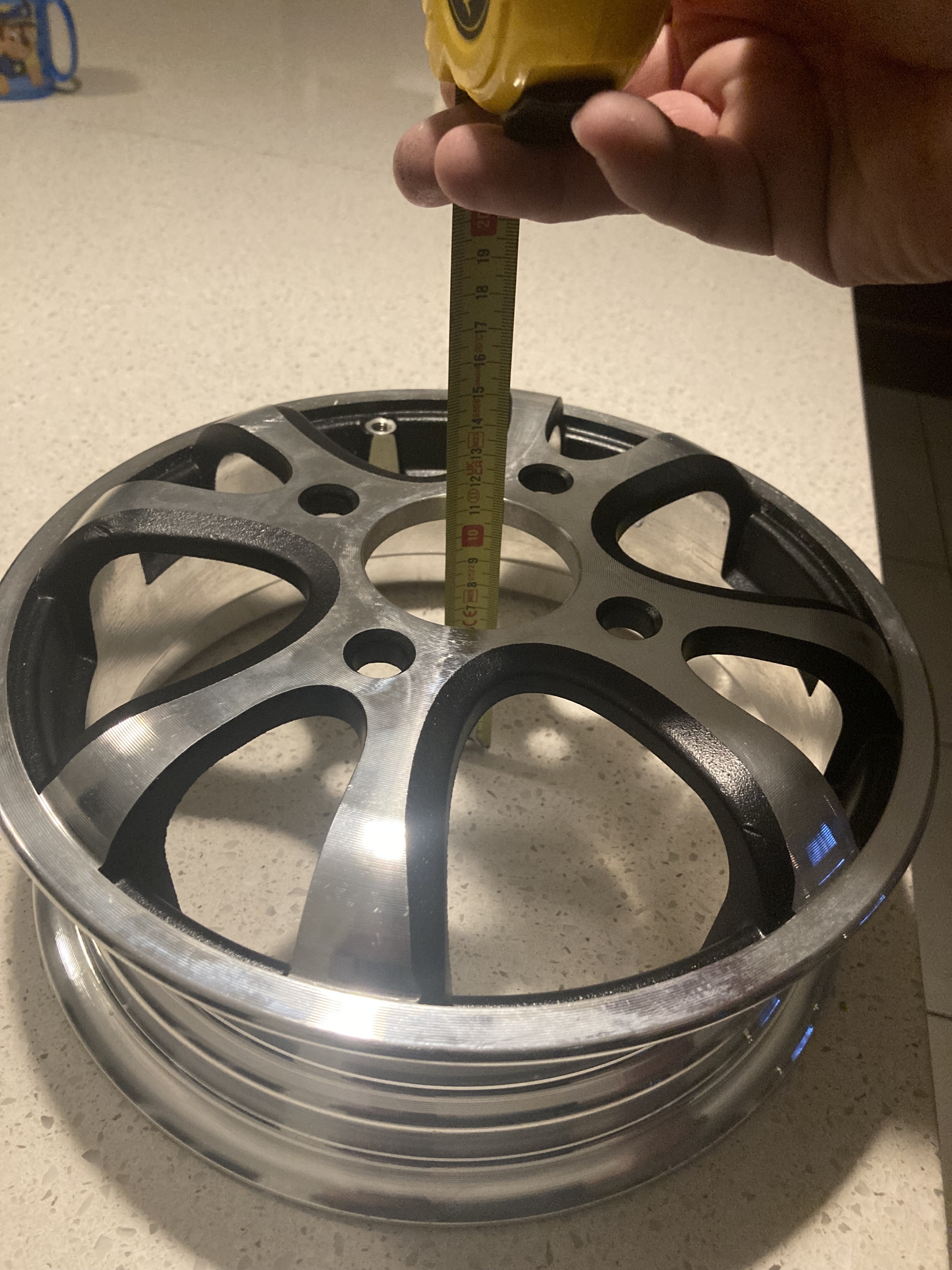

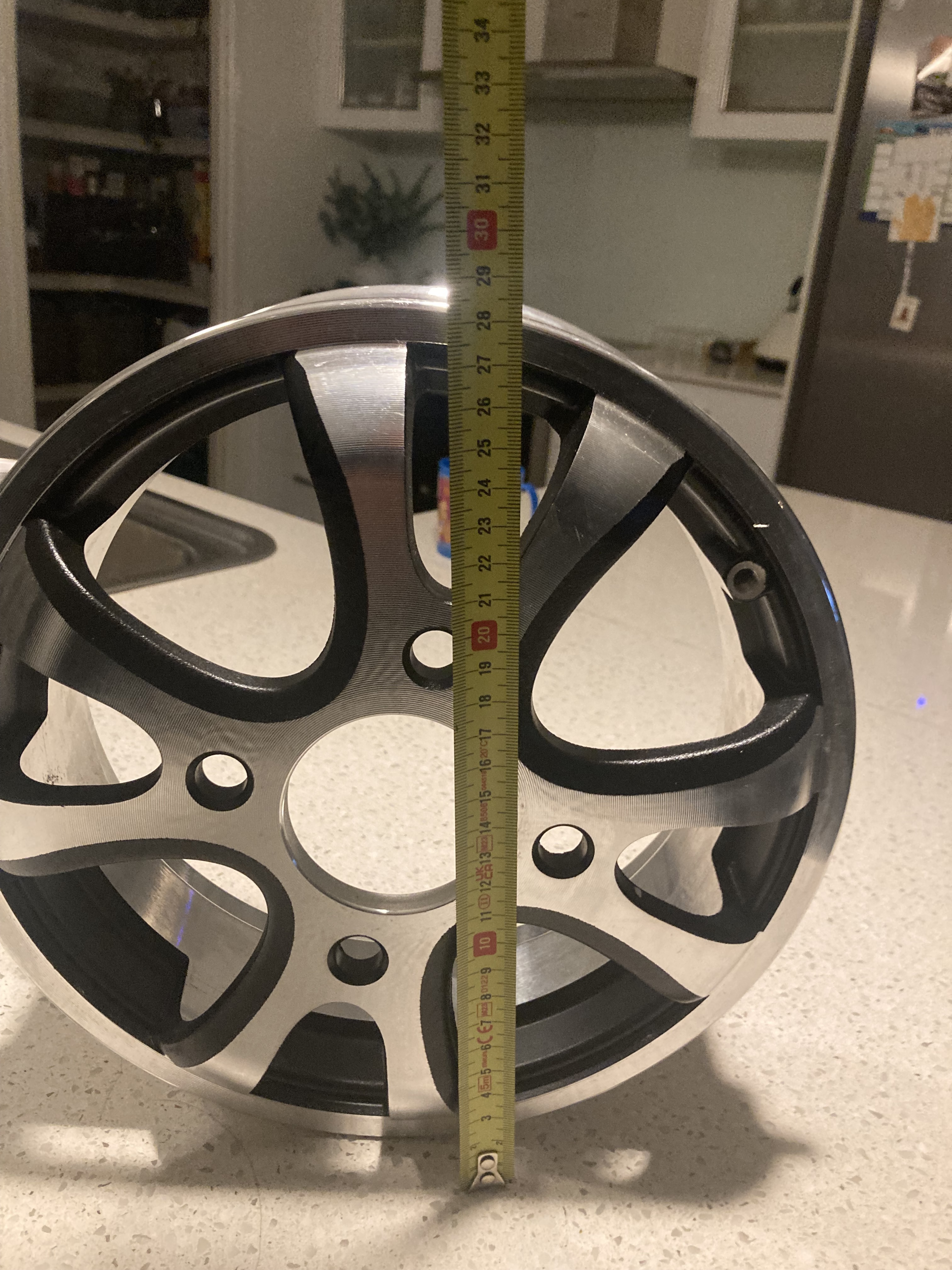

10 inch rim available but not included below
