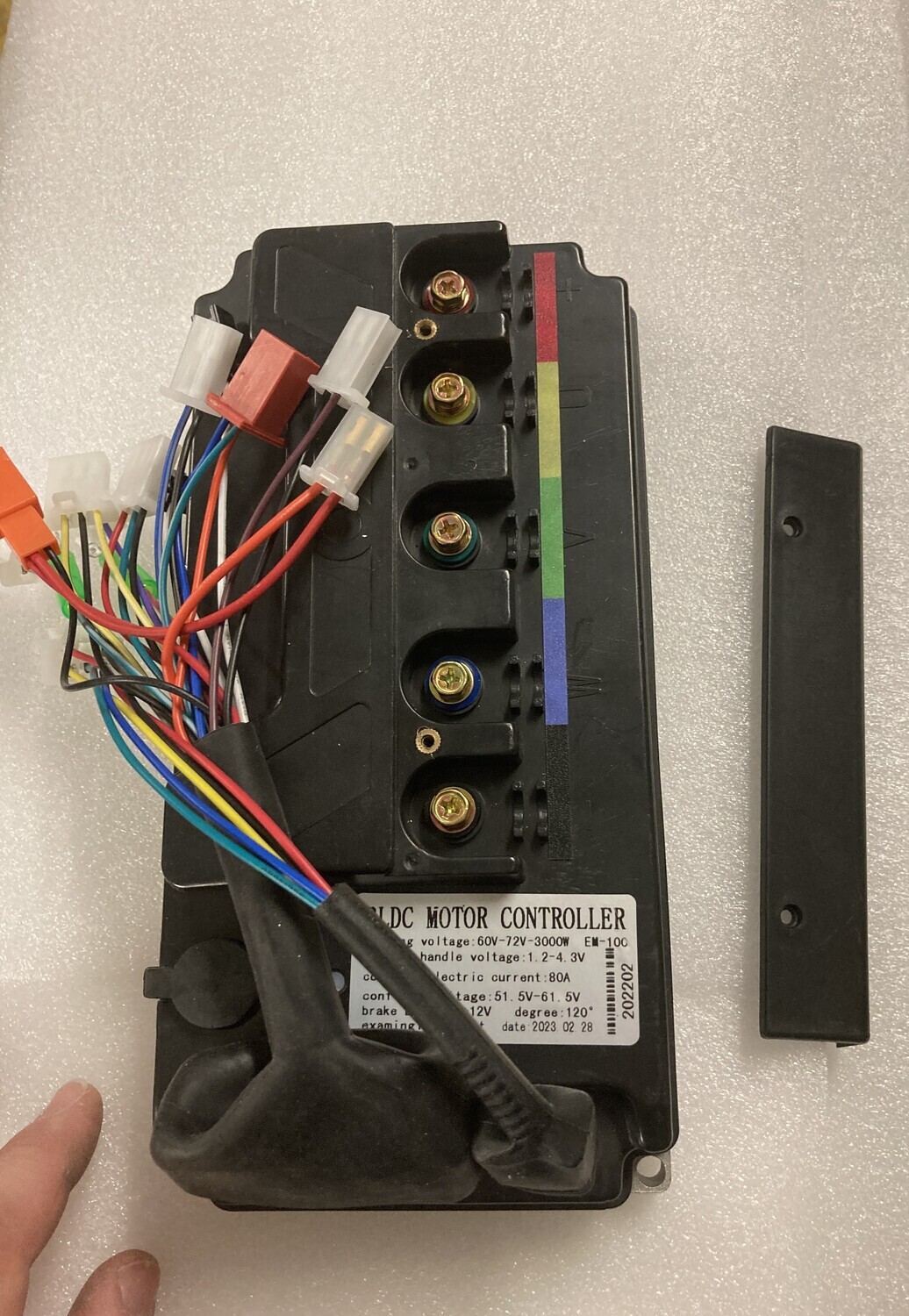

60-72v 3500w 80A sine wave brushless dc electric scooter motor controller
SKU 6072
AU$148.30
Sold out
Sold out
Product Details
Weight:
2 kg
|
Model:
|
YSATS-12
|
Motor Type:
|
brushless dc hub motor
|
|
Rated Voltage:
|
60v 72v
|
Rated Power :
|
3000-3500w
|
|
Controller type:
|
sine wave
|
Current:
|
max 80A(phase 230A)
|
|
Warranty:
|
1 year
|
Effectiveness:
|
75-86%
|
|
Certification:
|
CE
|
Net Weight:
|
2KG
|
|
motor application:
|
Scooter,Recreational vehicle,Electric bicycle
|
||
|
Product Features:
|
Waterproof,Totally Enclosed Small volume, light weight, large torque, high efficiency, stable performance, cost-effective superior
|
||
1.It is ok to work with 60v and 72V battery. one controller accepts muilt voltage.
2. The max continuous current is 80A, it is ok to drive 3000w to 4000w brushless dc motor
3. Max phase current 130A.
4. Functions: e braking,reverse,cruising switch,power switch.
This controller is sine wave brushless dc controller, it can run a motor with very low noise. We recommend you to use this controller with our 60v-72v high power fast speed hub motor for electric scooter.
